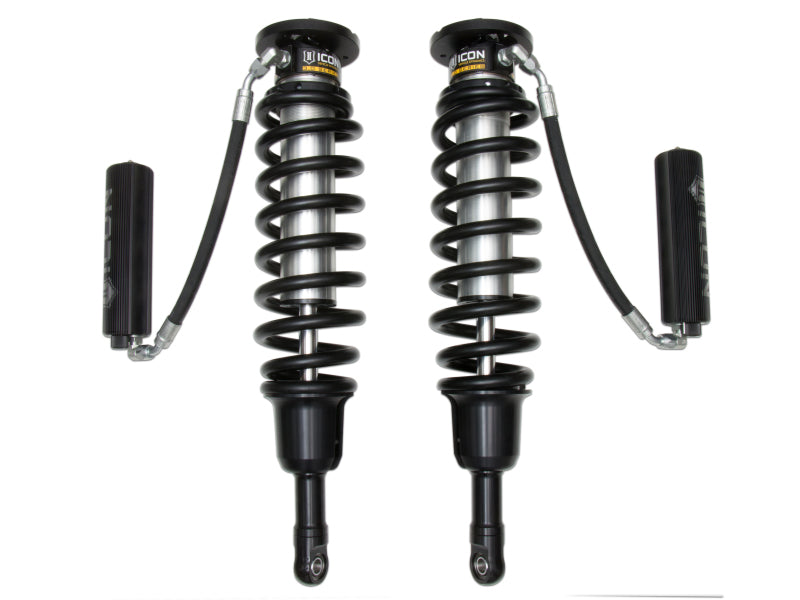

ICON 2017+ Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit
ICON 2017+ Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit
ICON 2017+ Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit
ICON 2017+ Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit
ICON 2017+ Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit
ICON 2017+ Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit
Click to zoom in

ICON 2017+ Ford Raptor Front 3.0 Series Shocks VS RR CDCV Coilover Kit

ICON
ICO95002
Many in stock
Coilovers
$3,816.95
The front end geometry of the Gen 2 Raptor was found to be fairly similar to the previous model truck, however the shock mounting points had been moved higher up on the chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has...

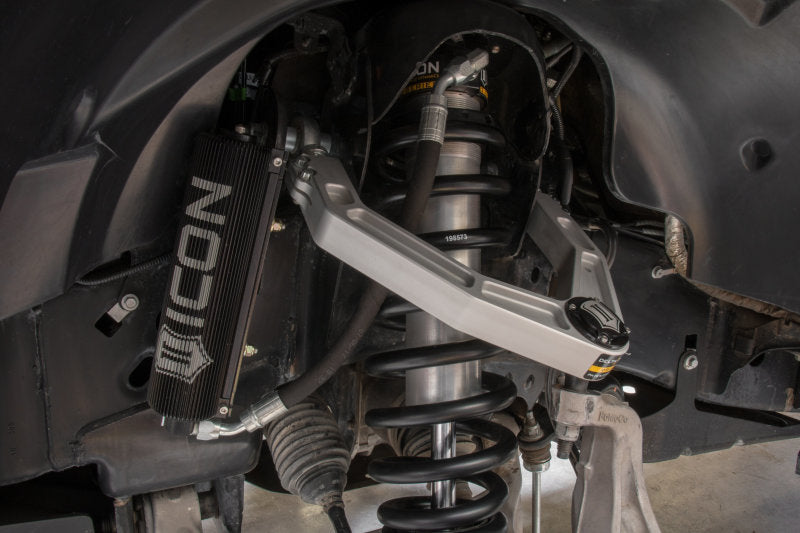

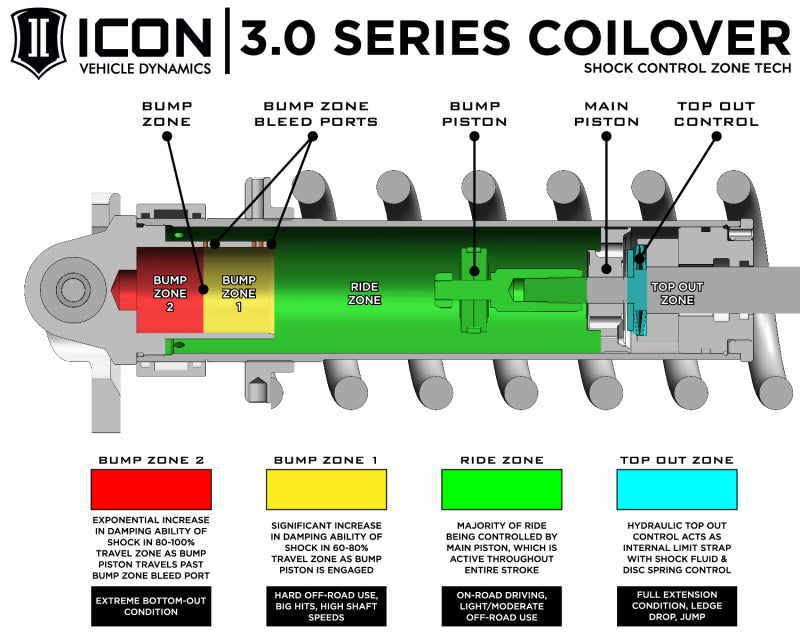

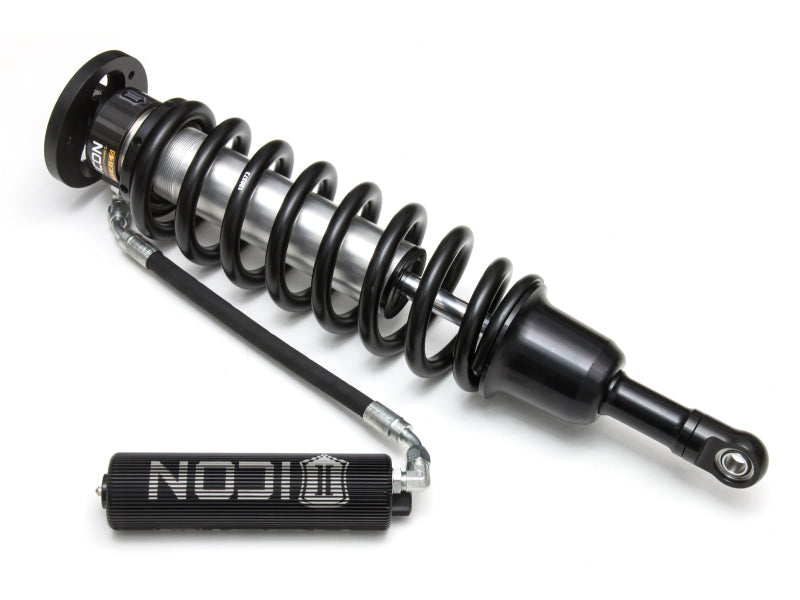

The front end geometry of the Gen 2 Raptor was found to be fairly similar to the previous model truck, however the shock mounting points had been moved higher up on the chassis. Seeing this as an opportunity, the team was able to design a 3.0 Series coilover that has more shaft travel while utilizing a barreled coil spring for more efficient packaging. The vehicle-specific valving featured in these shocks and the all new ICON-engineered spring work together to provide exceptional on-road ride quality with excellent off-road characteristics. ICON’s multi-stage hydraulic “Bump Zone” adds to the performance capability by providing an exponential increase in damping ability during the last 40% of compression travel for superior bottom-out resistance. In the ride zone, these 3.0 Series coilovers see a 50% increase in damping ability with the use of a significantly larger piston than what is found in the factory shocks. New 10” finned aluminum reservoirs provide a generous amount of shock oil while also providing an increase in surface area for enhanced cooling and consistent damping. The addition of ICON’s CDC Valve technology provides 10 settings of damping adjustment allowing the end-user to adjust the “feel” of the shocks for different terrains and vehicle cargo configurations. All of these features work together to deliver the perfect blend of on-road comfort and off-road performance.

This Part Fits:

Year Make Model Submodel
2017-2021 Ford F-150 Raptor
